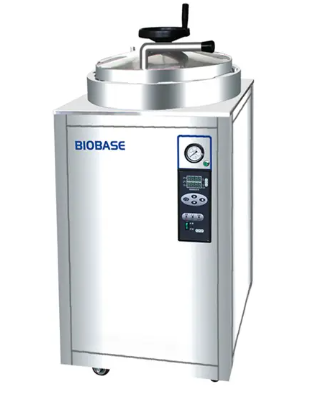

Vertical pulsed vacuum autoclave 50 L / 75 L / 100 L
Steam is used as the sterilization medium. The process involves creating a vacuum multiple times, filling the chamber with steam to a specific vacuum level, and subsequently introducing saturated steam to reach the required pressure and temperature, thereby sterilizing the items being processed. This equipment is primarily used in laboratories, the food industry, and other non-medical facilities for the sterilization of textiles, rubber items, instruments, laboratory glassware, culture media, and unsealed liquids.
Technical Specifications
Model: BKQ-B50V
Capacity: 50 L
Design Pressure: -0.1/0.28 MPa
Operating Pressure: 0.23 MPa
Design Temperature: 150°C
Operating Temperature: 105–134°C
Temperature Precision: 0.1°C
Chamber Material: S30408
Chamber Dimensions: φ386 × 490 mm
Basket: φ360 × 260 mm (1 unit)
Vacuum System: Ejector-type vacuum system
Noise Level: ≤65 dB(A)
Operating Altitude: ≤2000 m (customizable for altitudes between 2000 and 3000 m)
Standard Accessories: Printer, mesh basket with base
Power Consumption: 5.5 kW
Power Supply: AC 220V, 50 Hz or 60 Hz (standard) AC 110V, 60Hz (optional)
Connection method: Air circuit breaker
External dimensions (W*D*H): 700*610*1070 mm
Net weight: 127 kg
Packaging dimensions (W*D*H): 820*740*1380 mm
Gross weight: 142 kg
Technical specifications
Model: BKQ-B75V
Capacity: 75 L
Design pressure: -0.1/0.28 MPa
Operating pressure: 0.23 MPa
Design temperature: 150℃
Operating temperature: 105–134℃
Temperature precision: 0.1℃
Chamber material: S30408
Chamber dimensions: φ386*670 mm
Basket: φ360*360 mm, 1 pc.
Vacuum system: Ejector-type vacuum system
Noise level: ≤65 dB(A)
Altitude: ≤2000 m; customization available for altitudes of 2000–3000 m
Standard accessories: Printer, mesh basket with base
Power consumption: 6.2 kW
Power supply: AC 220V, 50Hz or 60Hz (standard) AC 110V, 60Hz (optional)
Connection method: Air circuit breaker
External dimensions (W*D*H): 700*610*1300 mm
Net weight: 130 kg
Packaging dimensions (W*D*H): 820*740*1530 mm
Gross weight: 145 kg
Technical specifications
Model: BKQ-B100V
Capacity: 100 L
Design pressure: -0.1/0.28 MPa
Operating pressure: 0.23 MPa
Design temperature: 150℃
Operating temperature: 105–134℃
Temperature precision: 0.1℃
Chamber material: S30408
Chamber dimensions: φ386*900 mm
Basket: φ360*330 mm, 2 units
Vacuum system: Ejector-type vacuum system
Noise level: ≤65 dB(A)
Altitude: ≤2000 m; customization available for altitudes of 2000–3000 m
Standard accessories: Printer, mesh basket with base
Power consumption: 6.2 kW
Power supply: AC 220V, 50Hz or 60Hz (standard) AC 110V, 60Hz (optional)
Connection method: Circuit breaker
External dimensions (W*D*H): 700*610*1300 mm
Net weight: 150 kg
Packaging dimensions (W*D*H): 820*740*1530 mm
Gross weight: 170 kg
